Legacy Motherboard

Legacy Motherboard

Price Ex VAT

Regular price £260.00 GBP
Regular price Sale price £260.00 GBP
Sale Sold out
Shipping calculated at checkout.

Chipset

Intel945GV + ICH7 chipsets
 ITE IT8712F LPC controller
 RTL8111CEthernet controller

LGA 775 socket E5400 2.7 GHz Dual Core

Memory

Two 240-pin DDRII sockets
 Support DDRII 400/533/667 SDRAM up to 4GB

VGA

Integrated Graphics controller in 945GV GMCH
 Integrated Intel Graphics Media Accelerator 950
 One VGA Port it can accelerate DirectX 9 performance of hardware,400MHz core frequency,up to 224MB display memory.

Ethernet

Onboard two RTL8111C 10/100/1000Base-T Ethernet controllers
 Full-Duplex supported

IDE SATA & FDD

One enhanced PCI IDE channels which support up to 2 IDE devices
 Four SATA devices
 Support ATA-100, data transfer rate up to 100MB/sec
 One FDC supports 1.2M/1.44M/2.88M FDD

PCI-E PCI ISA AUDIO COM & LPT

Support One PCI-E X16 devices
 Support five PCI devices
 Support two ISA devices
 Support 7.1 HDAudio
 Support two COM
 Support one LPT

System BIOS

Award BIOS with 4MB Firmware Hub
 ACPI / PnP supported
 Software WatchDog supported

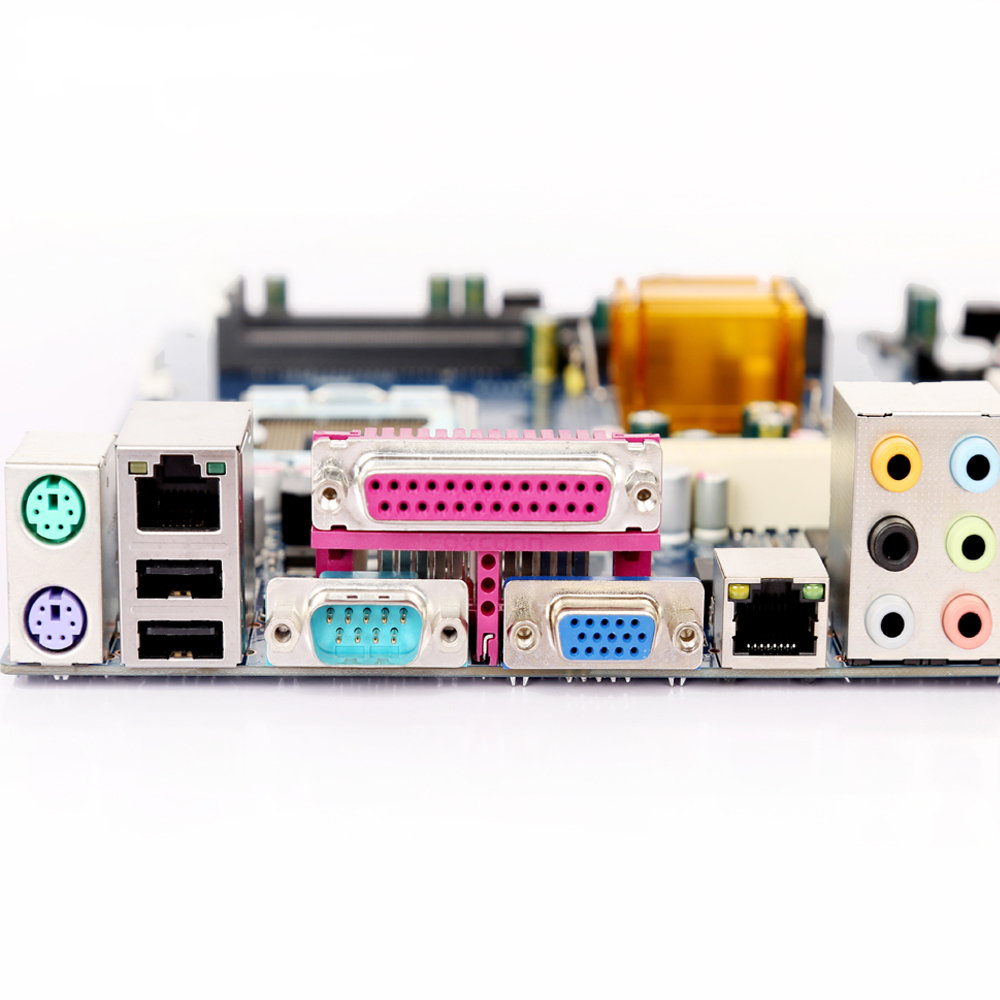

I / O Output

Two COM port & one Printer port
 One DB-15 VGA port
 PS / 2 mouse and keyboard connectors
 Double Deck downstream USB 2.0 ports
 Two RJ-45 LAN ports

Expansion Slots

Five PCI slot
Two ISA slot

Form Factor

Flex-ATX 305 mm (L) × 244 mm (W), 4 Layers
